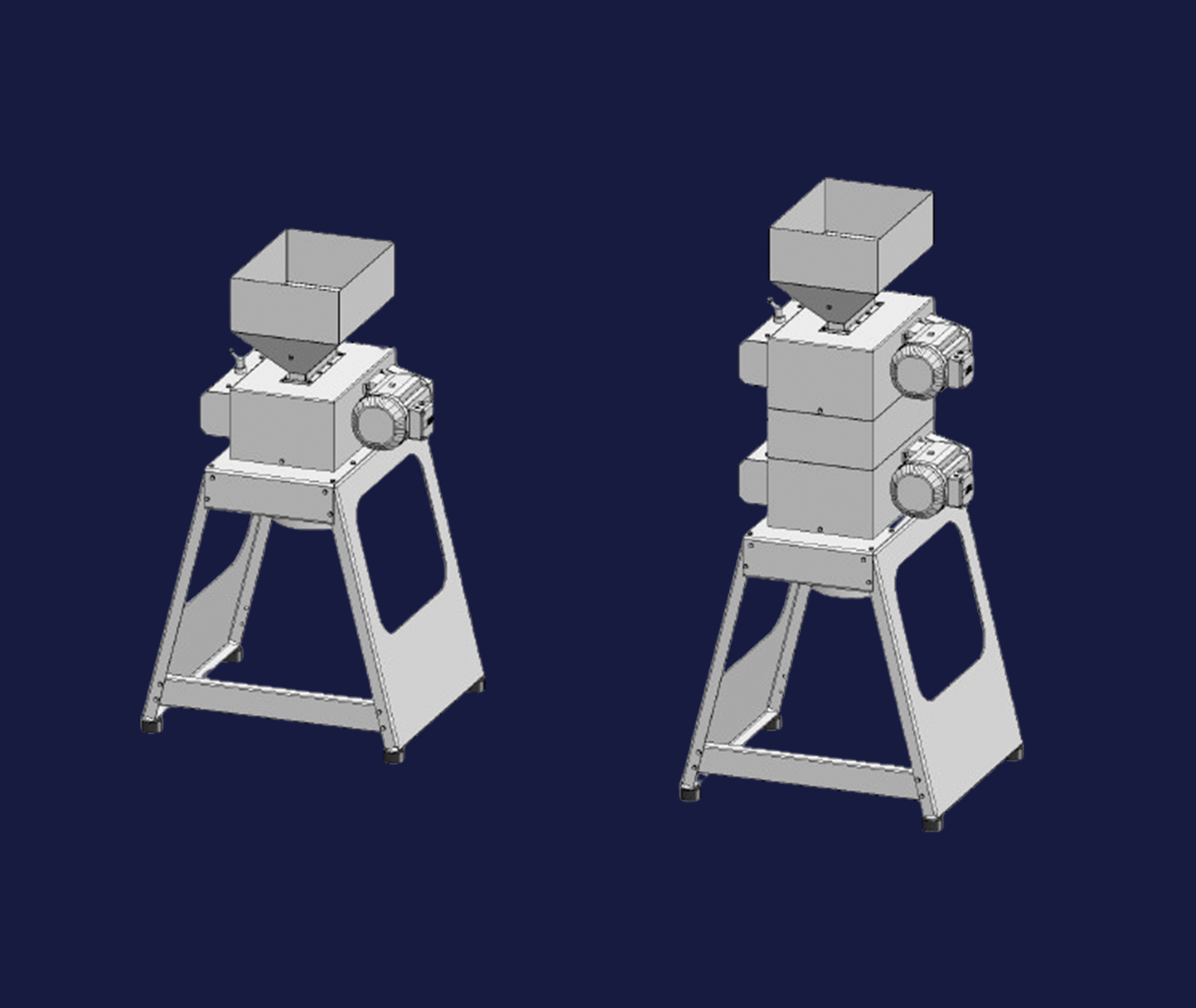

Grist Mills
Crushing malt and grain to make the best beer.

Künzel mills excel by their outstanding compliance with the technological requirements and for their extremely low operation costs, such as reduced power consumption, a long operating life of the rollers, the serviceability and extremely long service life of the complete system.
This is the result of over 100 years of experience in mill design, of solid constructions and high-precision manufacturing carried out by experienced professionals in our factory located in the Upper Franconian town of Mainleus.
A special advantage of the Künzel 6-roller mill is the intermediate screening between each pair of rollers, which results in particularly precise fractionating.
All safety requirements are taken into account. Künzel mills are certified and represent the state of the art in safety technology.
Control is carried out via a programmable electronic control system with Profibus or Profinet for communication with and integration into a supervisory process control system.
Type | Milling capacity kg/h | Length mm | Width mm | Height mm |
---|---|---|---|---|
16/06 | 100 | 750 | 356 | 256 |
16/06 | 250 | 750 | 456 | 256 |
16/30 | 500 | 750 | 356 | 256 |
16/16-2+2 | 400 | 750 | 456 | 712 |
16/30-2+2 | 800 | 750 | 596 | 712 |
Type | Milling capacity kg/h | Length mm | Width mm | Height mm |
---|---|---|---|---|
16/16-4 | 300 – 400 | 1,025 | 625 | 850 |
20/30A | 600 – 800 | 750 | 830 | 850 |
20/60A | 1,200 – 1,600 | 730 | 1,130 | 850 |
Type | Milling capacity kg/h | Length mm | Width mm | Height mm |
---|---|---|---|---|
E 25/80 | 4,000 – 5,200 | 2,535 | 1,900 | 2,130 |
E 25/100 | 5,400 – 6,500 | 2,535 | 2,150 | 2,130 |
E 25/125 | 6,700 – 8,000 | 2,535 | 2,400 | 2,130 |
E 25/150 | 8,000 – 10,000 | 2,535 | 2,650 | 2,130 |
Type | Milling capacity kg/h | Length mm | Width mm | Height mm |
---|---|---|---|---|
A 20/30 | 800 – 100 | 1,560 | 900 | 1,370 |
A 20/40 | 1,400 – 1,800 | 1,970 | 1,275 | 1,745 |
A 20/60 | 2,200 – 2,700 | 1,970 | 1,475 | 1,745 |
A 20/80 | 3,000 – 3,600 | 1,970 | 1,675 | 1,745 |
A 20/100 | 3,800 – 4,500 | 1,970 | 1,875 | 1,745 |
Type | Milling capacity kg/h | Length mm | Width mm | Height mm |
---|---|---|---|---|
H 20/60 | 3,000 | 1,400 | 1,000 | 1,500 |
H 20/80 | 4,000 | 1,600 | 1,000 | 1,500 |
