Screw Conveyors
Safely transporting grain, malt and other bulk materials over short distances.

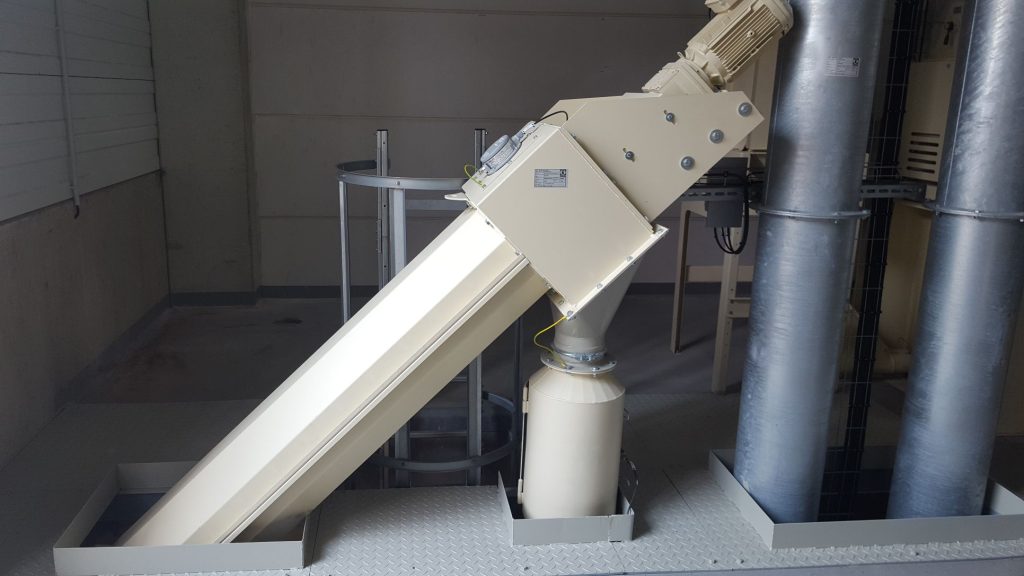

Künzel screw conveyors are used when grain, malt or other bulk materials have to be transported over relatively short distances. In doing so, the feed can be carried out horizontally, or at any angle of inclination.

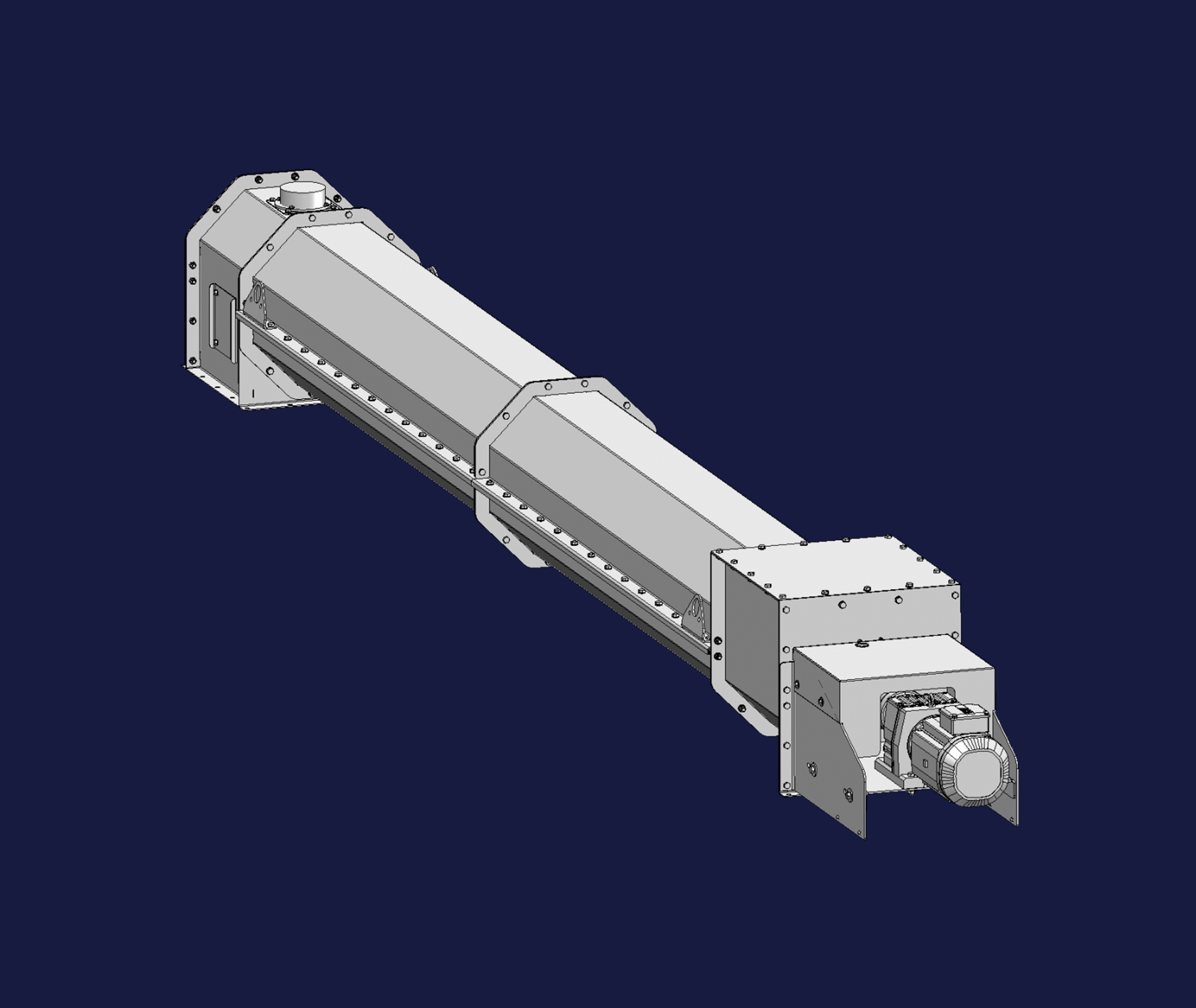

There is a selection of trough screw conveyors (with or without pressure relief cover) and tube screw conveyors to choose from, depending on the respective application.
These conveyors are available in several standard dimensions for a wide capacity range or they can be individually designed and manufactured as special versions for many different applications and conveying capacities.
Künzel screw conveyors are robust and of high serviceability. There is a choice between the normal steel version with painted or galvanized surface and a stainless steel version.
| Type | Screw diameter mm | Malt conveying capacity t/h | Motor output kW | Length m |
|---|---|---|---|---|
| FS 150 | 150 | to 8 | 0.75 – 2.2 | 2 – 12 |
| FS 200 | 200 | to 15 | 0.75 – 4.0 | 2 – 12 |
| FS 250 | 250 | to 25 | 1.1 – 7.5 | 2 – 12 |
| FS 300 | 300 | to 36 | 1.1 – 11 | 2 – 12 |
| FS 350 | 350 | to 47 | 1.5 – 15 | 2 – 12 |
| FS 400 | 400 | to 67 | 1.5 – 22 | 2 – 12 |
| FS 450 | 450 | to 90 | 2.2 – 30 | 2 – 12 |
Other sizes available on request
1 Perimeter speed of screw < 2m/sec
2 Intermediate bearing every 3 meters
Additional design features include:
- Direct drive with three-phase gear motor and elastic clutch (optionally with variable speed control)
- Alternatively a chain drive for restricted space conditions regarding length
- Tightly closing trough cover
- Compliance with ATEX requirements on explosion protection
Safety equipment
Künzel screw conveyors are very safe to operate and are fitted with the following monitoring elements:
- Congestion control switch
- Speed monitor (optional)
- Bearing temperature monitor (optional)
ATEX explosion protection
Künzel screw conveyors can also be used in potentially explosive atmospheres. Approval as explosion-proof device certified for Group II, Category 1 has been applied for.
