Flat Screen
Careful, clean and highly efficient for your production process.

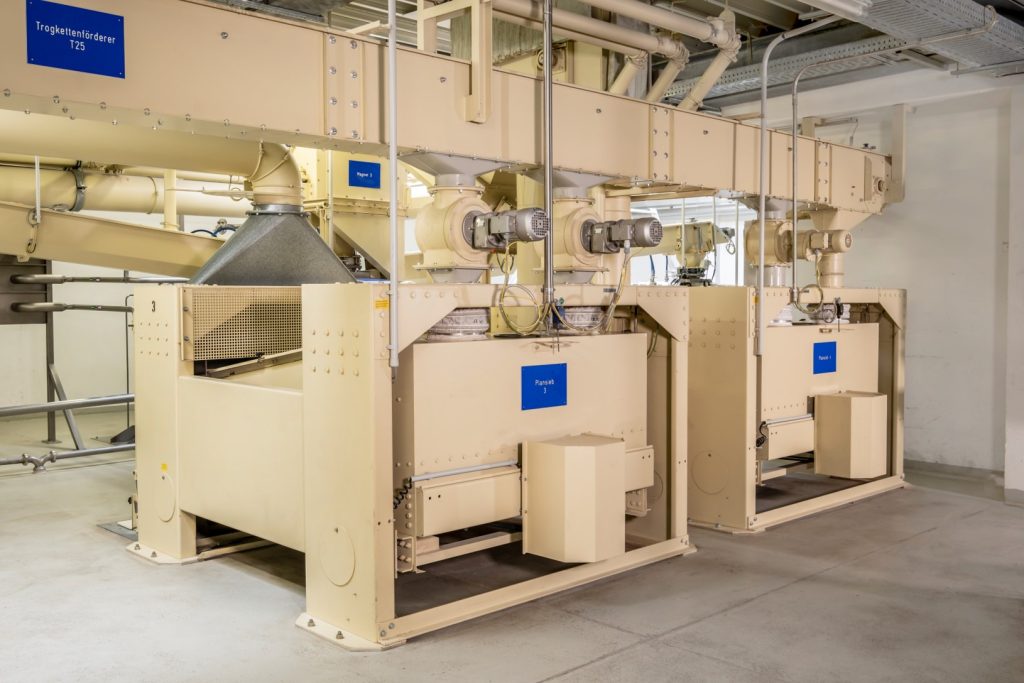

The Künzel flat screen is used to improve product quality by separating coarse and fine particles and extracting light particles such as grass.
The product to be cleaned enters the dust tight screen box, where the horizontally rotating movement of the screen separates the coarse and fine particles from the product, which are removed through lateral outlets.
In addition, an aspiration duct separates light particles from the product. A permanent magnet at the outlet extracts all metal pieces.

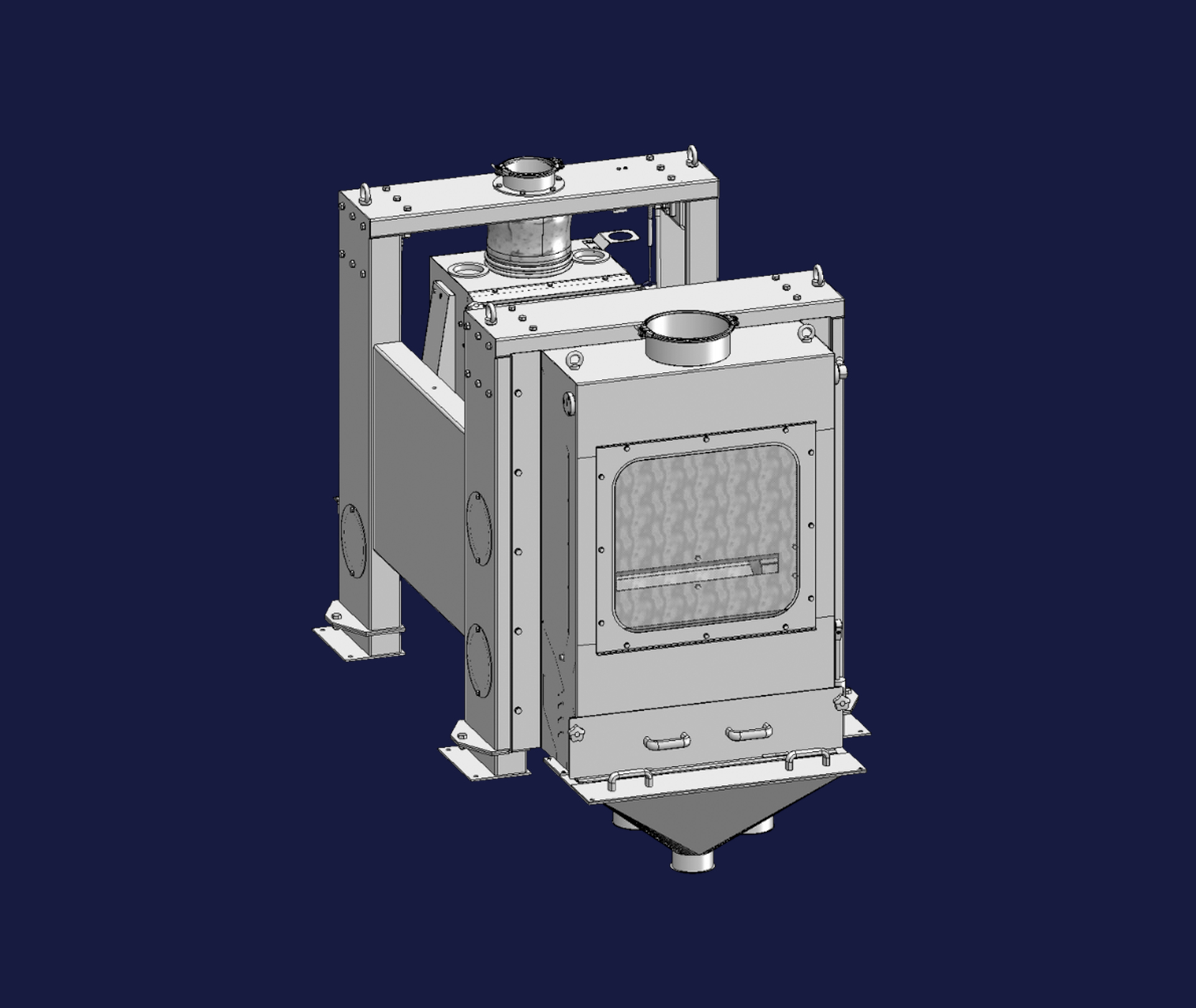

The machine itself is fabricated from steel. The screen box, with its two screen layers are freely suspended by rods. Cleaning is achieved by an approved system using rubber balls.
| Type | Capacity kg/h | Motor kW | Air cons. m³/min | Machine length mm | Machine width mm | Machine height mm | Screen length mm | Screen width mm | Weight kg |
|---|---|---|---|---|---|---|---|---|---|
| P 2052 | 5.000 | 0,75 | 25 | 1.750 | 1.210 | 1.350 | 500 | 1.200 | 500 |
| P 2072 | 7.000 | 0,75 | 40 | 1.750 | 1.469 | 1.350 | 750 | 1.200 | 570 |
| P 2102 | 10.000 | 0,75 | 60 | 1.750 | 1.710 | 1.350 | 1.000 | 1.200 | 650 |
| P 2108 | 15.000 | 1,5 | 60 | 2.730 | 1.670 | 1.450 | 1.000 | 1.800 | 780 |
| P 2158 | 22.500 | 1,5 | 90 | 2.750 | 2.170 | 1.450 | 1.500 | 1.800 | 1.000 |
Specifications are subject to change without notice.
Special features of Künzel flat screens:
- High efficiency
- Careful cleaning process
- Dust-free performance
- Low vibration running
- Low power consumption
- Low maintenance
