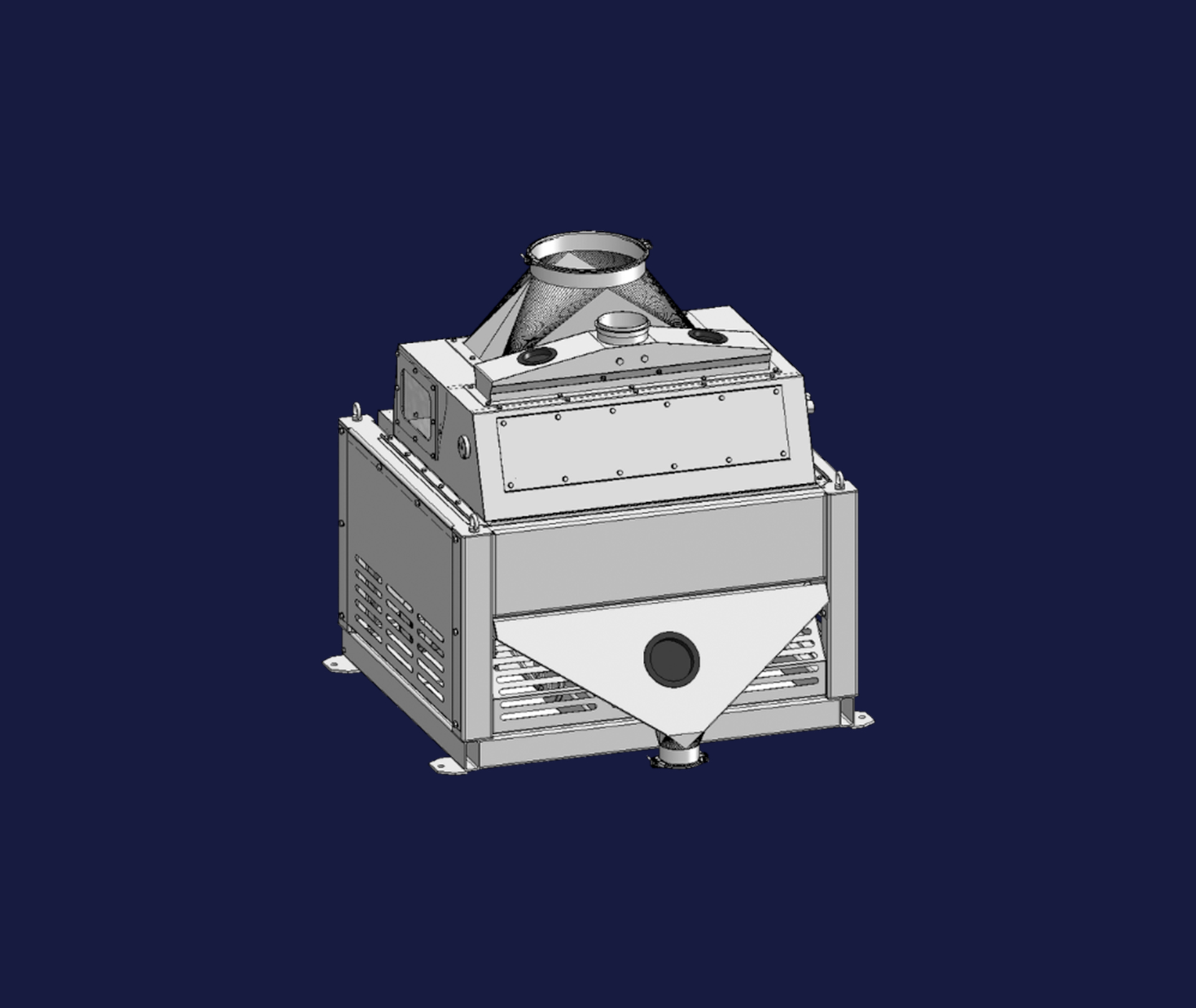

Destoner
Separating heavier contaminants from the brewing process.
Our destoners are precision-made to support brewing processes with contaminant-free operations.
After passing through an adjustable inlet, the product arrives on an inclined screen, where a stream of air holds it in suspension.
Heavier items such as stones or metal fragments remain on the screen, being transported to the top where they exit the machine through the stone run out.
| Type | Capacity y = 0,54 kg/h | Motor kW | Air cons m³/min | Length mm | Width mm | Height mm | Weight ca. kg |
|---|---|---|---|---|---|---|---|
| ST 005 | 2.600 | 0.37 | 40 | 1.455 | 860 | 1.300 | 410 |
| ST 010 | 5.300 | 0.55 | 75 | 1.455 | 1.360 | 1.370 | 520 |
| ST 125 | 6.500 | 0.75 | 90 | 1.455 | 1.610 | 1.370 | 580 |
| ST 210 | 10.500 | 0.75 | 150 | 1.455 | 2.575 | 1.370 | 910 |
| ST 212 | 13.000 | 0.75 | 190 | 1.455 | 3.075 | 1.370 | 1.020 |
Specifications are subject to change without notice.
Special features of Künzel destoners:
- Adjustable product feed
- Easily adjustable air stream
- Driven by normal motor and crankshaft
- Covering hood with inspection openings and viewing window
- Dust-free operation
